OVERVIEW
Armourdeck Steel Formwork provides a fast, efficient method of creating suspended concrete slabs. The composite action of steel decking also increases efficiency by forming a higher performance composite slab.
Steel Decking – Armourdeck
Steel Decking – Armourdeck
Armourdeck Steel Formwork provides a fast, efficient method of creating suspended concrete slabs. The composite action of steel decking also increases efficiency by forming a higher performance composite slab.
Description
Armourdeck Steel Formwork provides a fast, efficient method of creating suspended concrete slabs. The composite action of steel decking also increases efficiency by forming a higher performance composite slab.
Steel Decking offers excellent spanning capabilities, high composite strength and minimal deflection. It is ideal for both concrete and steel frame construction.
This is roll-formed from hot-dip zinc coated, hi tensile steel strip in a range of base metal thicknesses (BMT) conforming to AS1397.
Please refer to our Armourdeck Brochure for detailed technical information including Deflection Limits and general product data.
Manufactured in two deck profiles to better fit the needs of your project
- Fast, easy installation
- No stripping of formwork
- Works as a composite slab
- Saves on concrete and reinforcement
- Reliable interlocking joins
- High composite strength
- Long spanning capability
- Interlocking horizontal laps
- Two widths 600 and 300mm
- Anti-glare coating

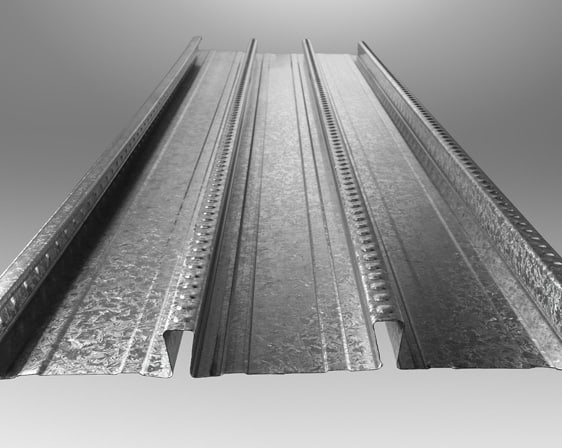

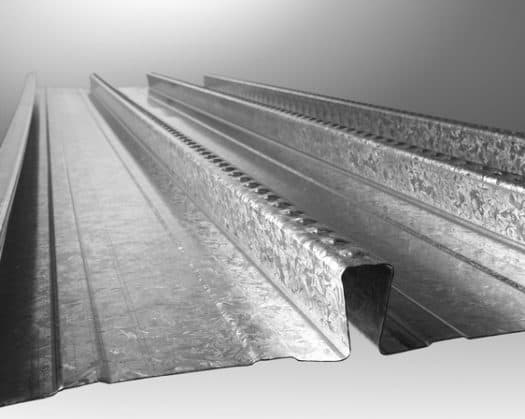

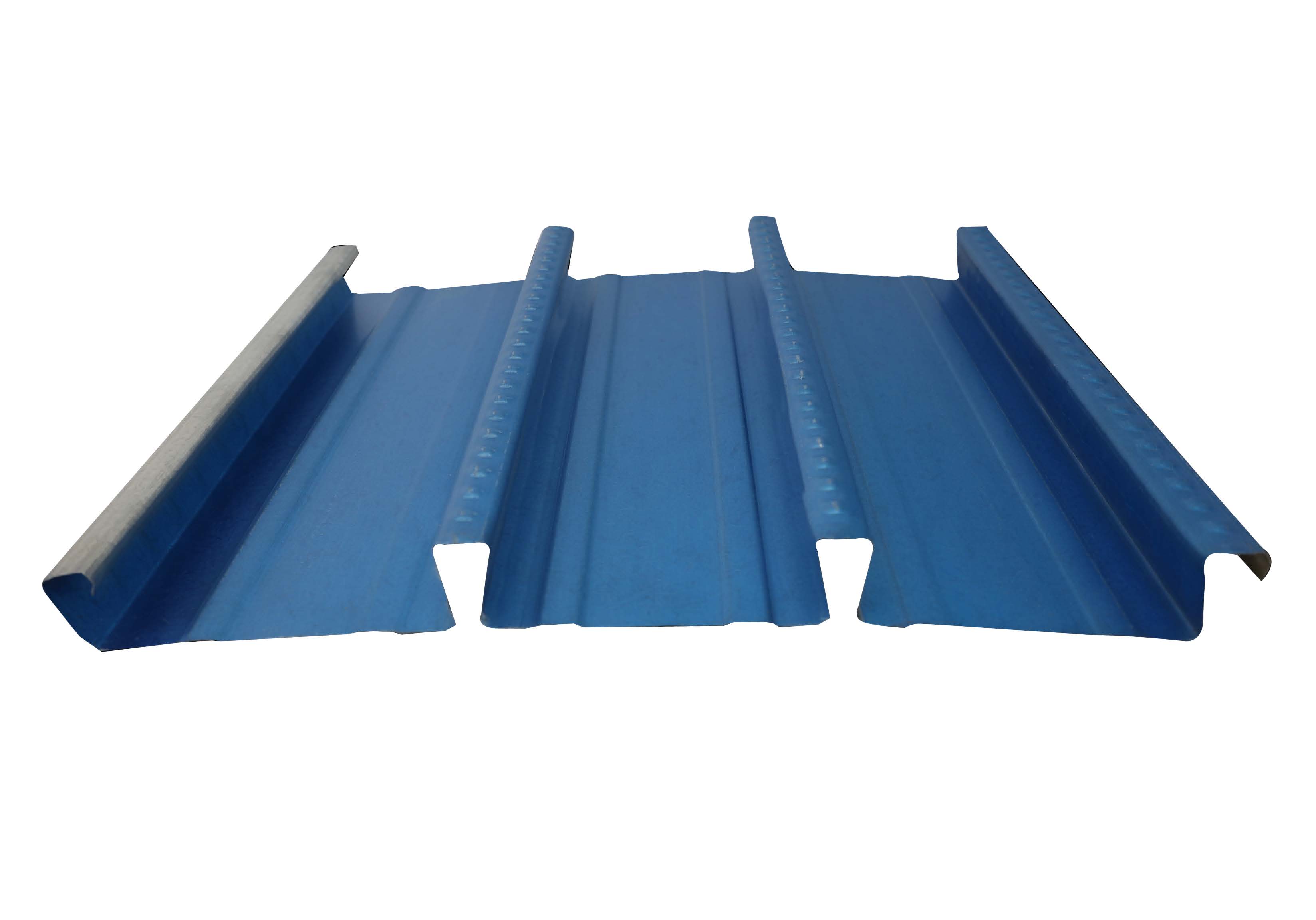

ARMOURDECK™ 600
- 600mm width for quick cover
- High composite strength
- Long spanning capability
- Ribs create safe working platform
- Interlocking horizontal laps
- Slip-resistant embossments

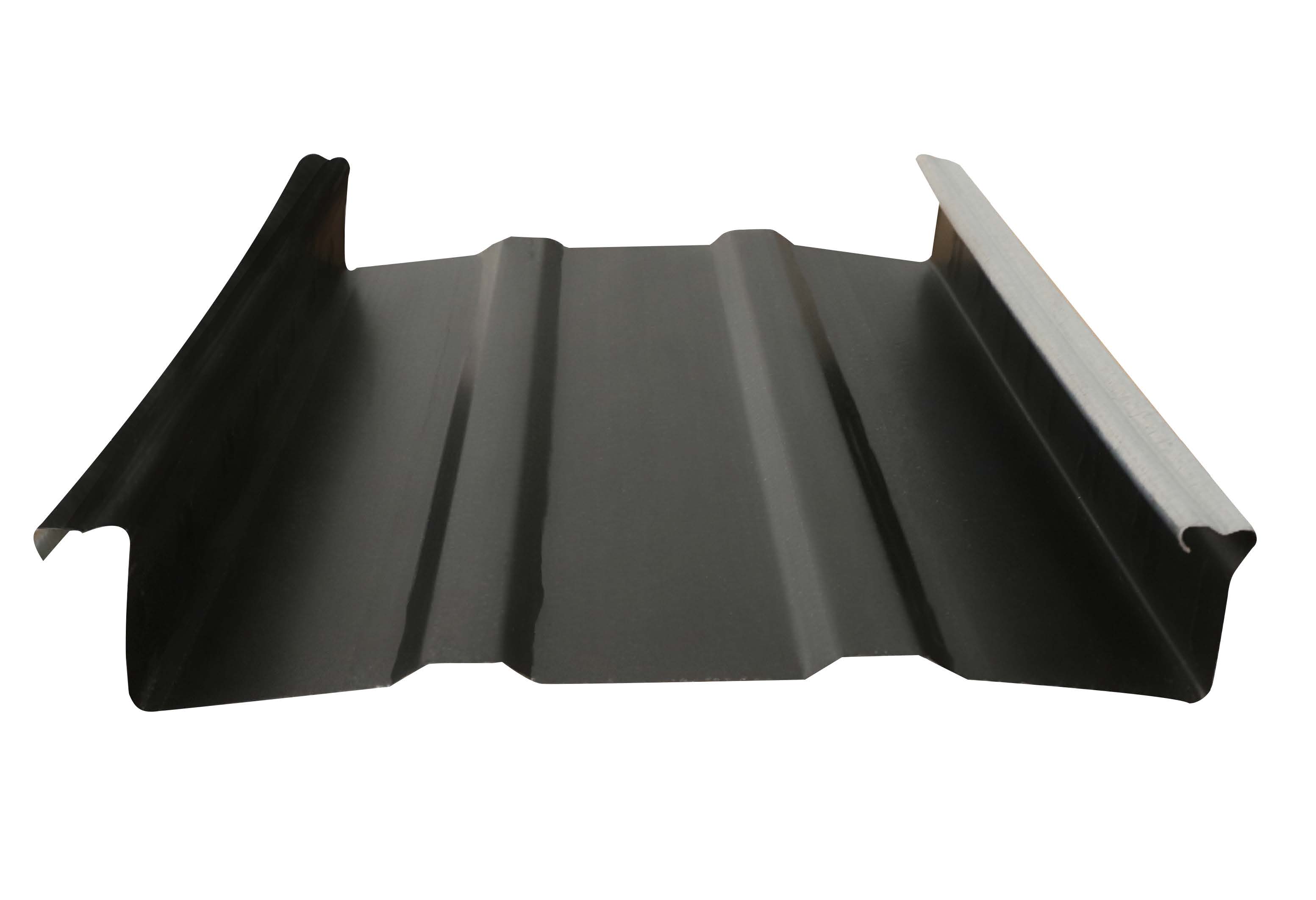

ARMOURDECK™ 300
- 300mm width for ease of handling
- Light and easy to carry
- Composite action
- Interlocking laps

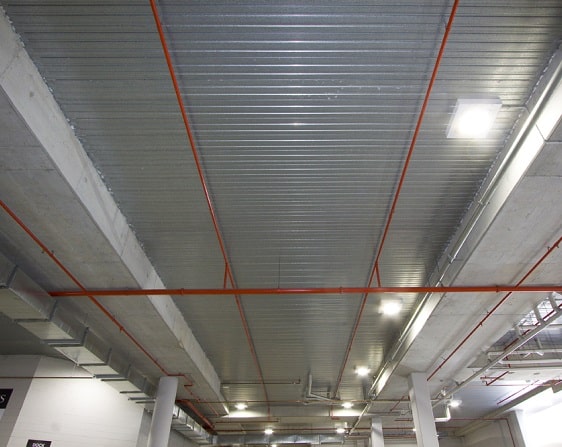

- Flat soffit for attractive ceiling finish
- No voids in slab
ARMOURDECK™ 600 – General Product Data
| Gauge BMT (mm) | Lineal Metres per Tonne | Mass Linear | Mass (kg/m2) |
Zinc Coating (g/m2) | Yield Strength (MPa) | Coverage (m2/tonne) |
|---|---|---|---|---|---|---|
| 0.75 | 161.4 | 6.20 | 10.33 | Z350 | 550 | 96.84 |
| 1.00 | 122.8 | 8.14 | 13.57 | Z350 | 550 | 73.68 |
ARMOURDECK™ 300 – General Product Data
| Gauge BMT (mm) | Lineal Metres per Tonne | Mass Linear | Mass (kg/m?) | Zinc Coating (g/m?) | Yield Strength (MPa) | Coverage (m?/tonne) |
|---|---|---|---|---|---|---|
| 0.75 | 334 | 2.99 | 9.98 | Z350 | 550 | 100.2 |
| 1.00 | 254 | 3.93 | 13.12 | Z350 | 550 | 76.2 |
