OVERVIEW
Big River stocks high quality steel reinforcing products and accessories supplying the leading industry brands.
Reinforcing Products
Reinforcing Products
Big River stocks high quality steel reinforcing products and accessories supplying the leading industry brands.
Description

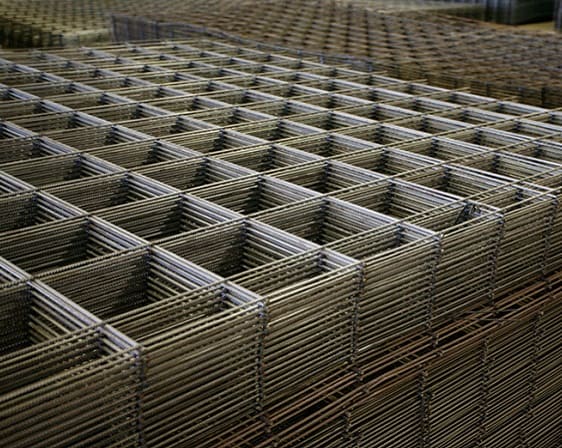

Reinforcing Mesh and Trench Mesh
Steel reinforcing mesh is stocked in square ribbed mesh sheets 6m long x 2.4m wide. Low ductility ribbed Trench mesh is also available for residential and commercial sites for your convenience. Applications include reinforced concrete slabs, driveways and footpaths, precast & tilt-up slabs. See our specifications tab for further details.

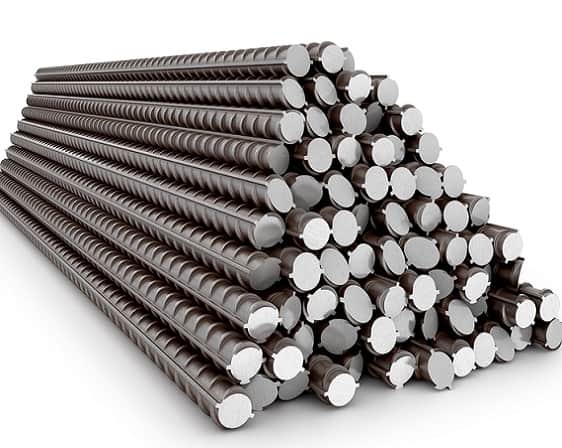

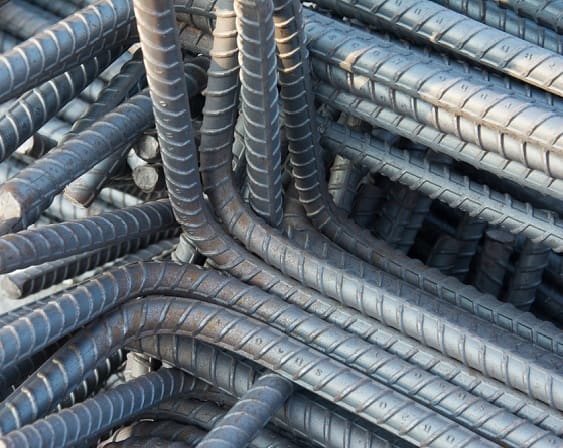

Bar
Big River Group stock and deliver normal ductility class Type 500N deformed reinforcing bar. Typical reo bar applications include residential, commercial and industrial applications from concrete slabs to precast products. Reo Bar is used in construction sites for reinforcing concrete structures such as bridges, roads, and buildings to increase stability and resistance to mechanical stress. We stock L and Z shaped bar and can provide processed bar as scheduled off the plan to meet your requirements.

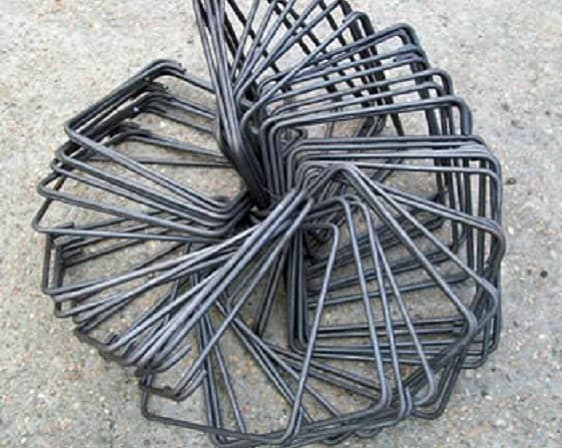

Ligatures
Typical applications include footing cages and supports for trench mesh when forming up residential slabs. Rectangular and square ligatures are stocked in a range of sizes. Click on the specification tab for more details of the ligatures Big River stocks.
Reo Accessories
For your convenience our one-stop building and reinforcing supplies are available so there’s no delay in getting the job completed on time. Choose from our range of plastic slab on ground bar chairs, tie wire, edge-boards, timber pegs, and Armourdeck steel formwork for suspended concrete slabs and more.
Big River has competitive prices on a comprehensive range of reo, building & construction supplies and we deliver to site for your convenience. Talk to our experienced staff about advice or ideas, or send us your online request for a quote today. Always consult with a qualified structural engineer to ensure the product selected is suited for your application. Discover the advantages of getting all your project requirements from Big River Group.
Refer to the Specifications below to view the Big River reinforcing product range stocked and the Downloads for further information.
SPECIFICATIONS
| Reinforcing Product Range | |||
| Reinforcing Mesh – 6m x 2.4m | |||
| Product | Cross Wires mm | Edge Wires mm | Mass kg |
| SL62 | 6.00 @ 200 | 4.77 @ 100 | 33 |
| SL72 | 6.75 @ 200 | 4.77 @ 100 | 41 |
| SL82 | 7.6 @ 200 | 5.37 @ 100 | 52 |
| SL92 | 8.6 @ 200 | 6.00 @ 100 | 66 |
| Trench Mesh – Low Ductility Ribbed – 6m | |||
| Product | Longitudinal Wires mm | Cross Wires mm | Mass kg |
| L11 – 200 x 6.0 | 10.65 @ 100 | 4.77 @ 300 | 13 |
| L11 – 300 x 6.0 | 10.65 @ 100 | 4.77 @ 300 | 18 |
| L12 – 200 x 6.0 | 11.9 @ 100 | 4.77 @ 300 | 16 |
| L12 – 300 x 6.0 | 11.9 @ 100 | 4.77 @ 300 | 22 |
| Reinforcing Bar – Normal Ductility Class Deformed – Type 500N | |||
| Product | Diameter mm | Length m | |
| N12S | 12 | 6 | |
| N16S | 16 | 6 | |
| N20S | 20 | 6 | |
| Bar Chairs – Slab On Ground – Plastic combo | |||
| Product | Size mm | Per bag | |
| 50-65 clip-on | 50 x 65 | 100 | |
| 75-90 | 75 x 90 | 100 | |
| 25-40 | 25 x 40 | 100 | |
| Tie Wire – Black 1.6mm | |||
| Product | Length m | Per bundle | |
| TW4 Belt Pack | 95 | 10 | |
| Trench Mesh Ligatures R10mm | |||
| Product | Size mm | Per bundle | |
| TML3020 | 300 x 200 | 10 | |
| TML3520 | 350 x 200 | 10 | |
| TML3025 | 300 x 250 | 10 | |
| TML3030 | 300 x 300 | 10 | |
| TML3530 | 350 x 300 | 10 | |
| Processed Bar | As scheduled off the plan | ||
