Big River Formply F14 - ArmourForm, F17 Formply formply thickness

OVERVIEW

Armourform has been used on most of Australia’s premier construction sites for more than 30 years, including Sydney’s Anzac Bridge, Sydney Harbour Tunnel and Lang Park Stadium.

Formply

Armourform has been used on most of Australia’s premier construction sites for more than 30 years, including Sydney’s Anzac Bridge, Sydney Harbour Tunnel and Lang Park Stadium.

Description

Armourform has been used on most of Australia’s premier construction sites for more than 30 years, including Sydney’s Anzac Bridge, Sydney Harbour Tunnel and Lang Park Stadium. Armourform has been exported to New Zealand, England, the Middle East and South-East Asia, and used in many internationally renowned construction sites including Dubai Festival City, BurJuman Shopping Centre, Dubai; Central Plaza Tower, Hong Kong; Chi Mei Bridge, Taiwan; Singapore Airlines Tower, Singapore; My Tuan Bridge, Vietnam; Di Wang Tower, China; High Speed Rail, Korea.

Fully Accredited
Manufactured in Australia at Big River’s Grafton and Wagga Wagga sites, all Big River formply is certified under the EWPAA product certification scheme to meet AS/NZS 6669. All products carry the PAA stamp of accreditation to the relevant Australian and New Zealand Standards under a JAS-ANZ accredited, third party audited quality control program that is internationally recognised.

Refer to the Specifications below for full product information, including comparative features and benefits of each product in the range.

SPECIFICATIONS

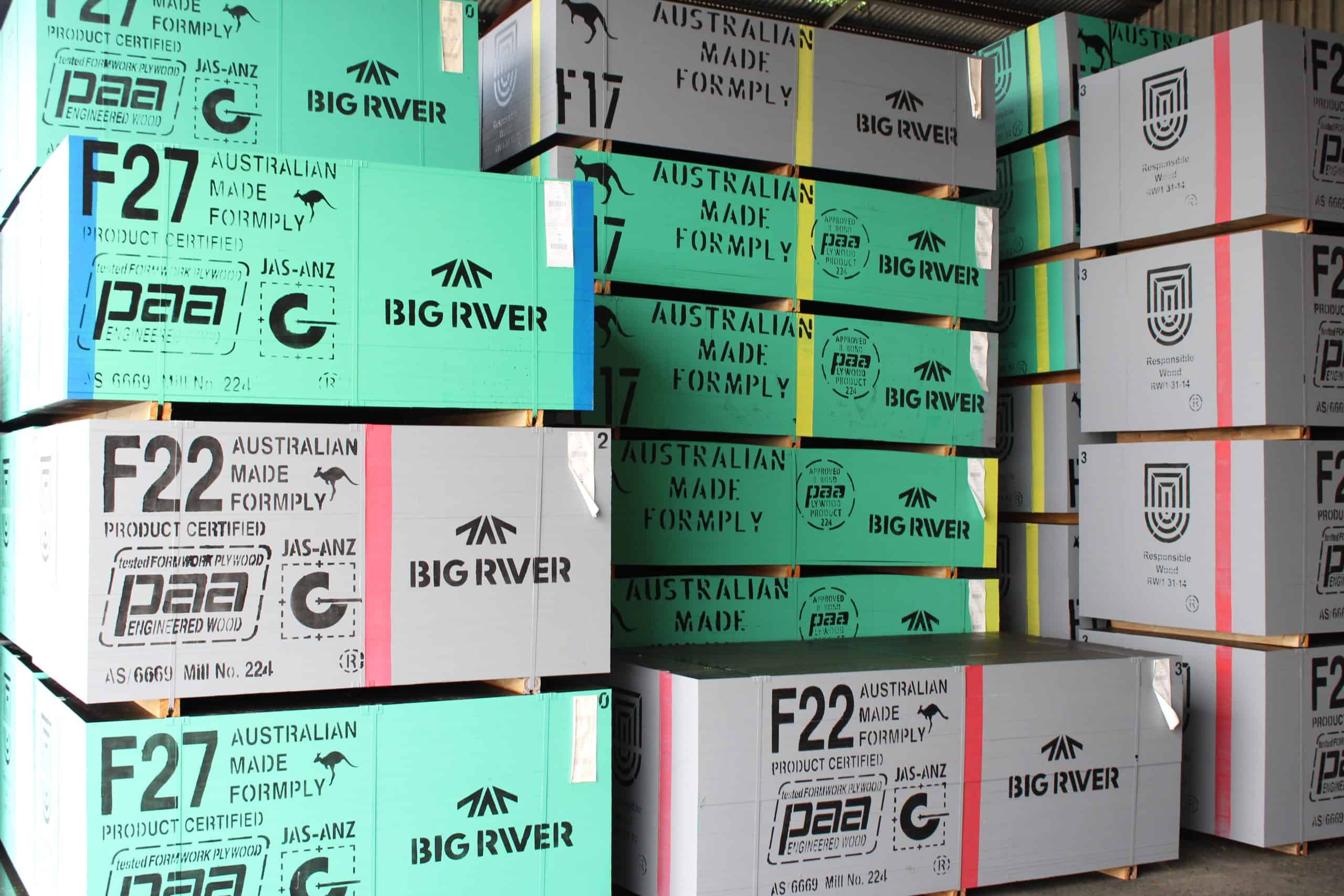

Armourform Formply Range

Stress Grade Sheet Size Thicknesses Construction
F27/F22 Armourform 1800×1200, 2400×1200 12, 17, 19 & 25mm Total hardwood
F22/F14 Armourform 1800×1200, 2400×1200 12, 17, 19 & 25mm Mixture pine and hardwood
F17/F14 Armourform 1800×1200, 2400×1200 12, 17, 19 & 25mm Mixture pine and hardwood
F14 Armourform 1800×1200, 2400×1200 12, 17, 19 & 25mm Mixture pine and hardwood

Armourform Specifications

Stress Grades F14, F17/F14, F22/F14, F27/F22
Standard AS/NZS 6669
Timber Species Mixed Hardwood, Radiata Pine, 0.9mm Hardwood face and back
Moisture Content As per AS/NZS 2269 (not less than 8% or more than 15%)
Tolerance As per AS/NZS 2369
Adhesives Phenol formaldehyde (AS/NZS 2754.1) -Type A.
Melamine fortified urea formaldehyde (AS/NZS 2098.2) – Type B
Bonds F22/F14 and F27/F22 – Type B (AS/NZS 2098.2)
F17/F14 – Type A or B
F14 – Type A
Formaldehyde Emission Super E0
Off-form Finish Suitable for Class 2 and Class 3
Certification EWPAA. Chain of Custody AS4707

Features and Benefits

Armourform F27/F22

  • Total Hardwood Green Edge formply with a high density phenolic overlay
  • Premium quality formply, manufactured and designed for fixed form work applications
  • Superior spanning capabilities ideal for table forms, jump forms, slip forms, shutters, heavy civil engineering and mining applications

Armourform F22/F14

  • Green Edge Red Stripe formply constructed with a mixture of hardwood / pine veneers and has a high-density phenolic overlay
  • Cost effective formply with a high strength to weight ratio
  • Offers great versatility as it can be used in all applications from conventional to system form work

Armourform F17/F14

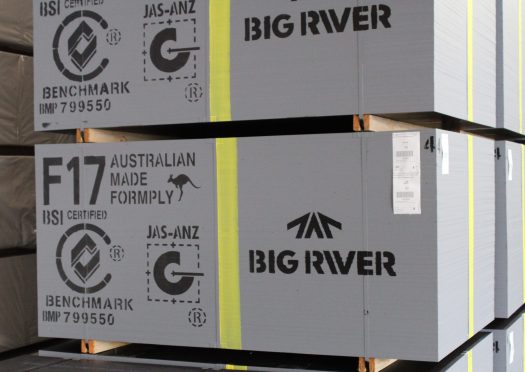

  • Green Edge Yellow Stripe formply constructed with mixed species veneers with a hardwood face and phenolic overlay
  • Highly durable and ideal for general form work use such as decks, recast and tilt up panel construction

Armourform F14

  • Constructed from pine veneers with hardwood face and phenolic overlay
  • Cost effective formply for general use, but without the strength or re-usability of the higher stress graded products in our range
