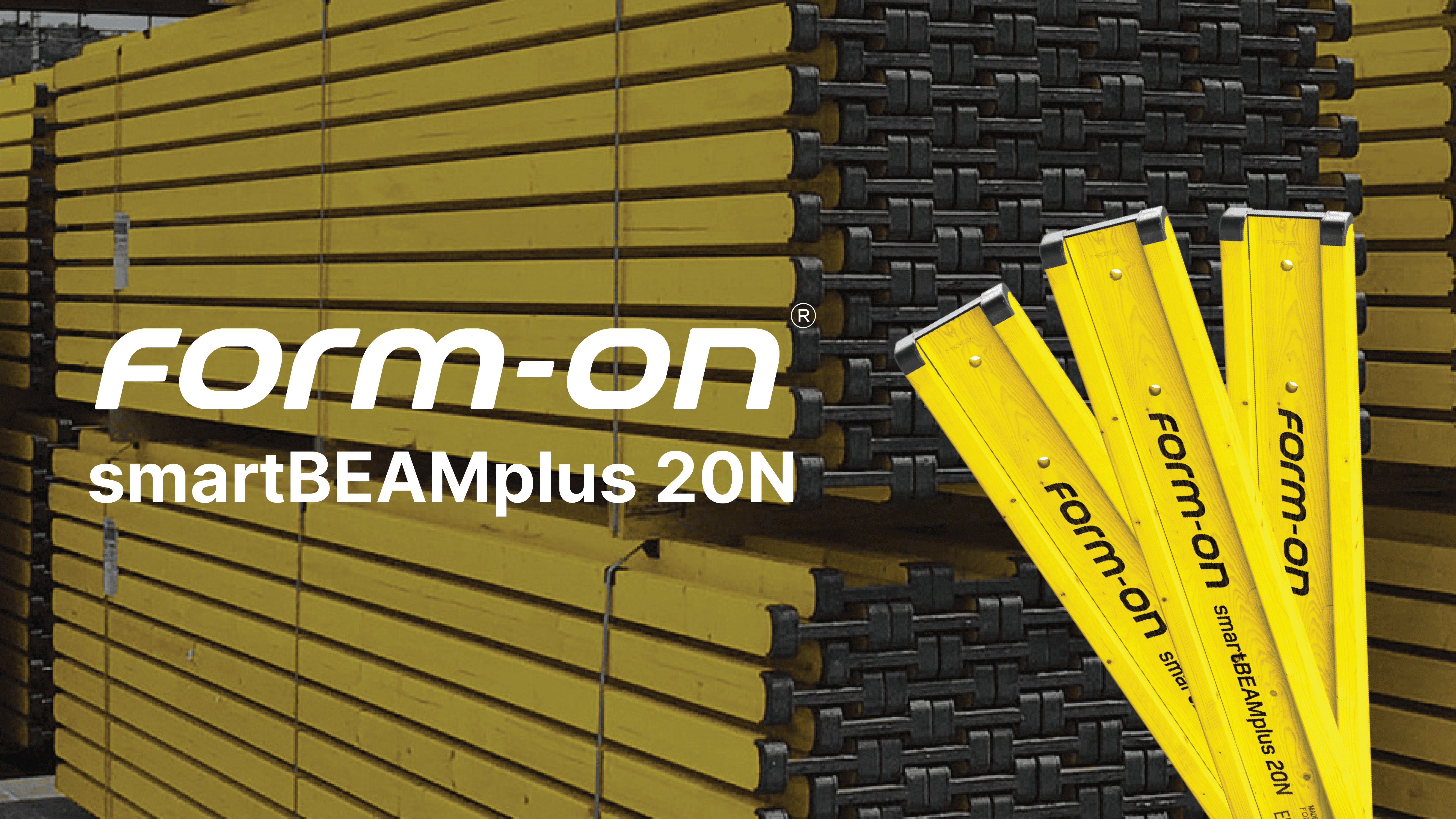

Form-On smartBEAMplus 20N

Incredibly light & dimensionally stable with a high load capacity.

• Lightweight for easy handling
• Unmatched durability due to P-Beam end
• Lower transport costs due to less weight
• Secured high load capacity according to EN 13377

Your Advantages

• INNOVATION: Incredible lightweight due to reduction of web thickness with usual strong performance.
• STABILITY: High stability due to optimised finger-jointing.
• EFFORTLESS HANDLING: 4,4 kg/rm for easier handling on the construction site and during transport.
• DURABILITY: Reduction of damage to the beam end due to high-quality polyurethane end reinforcement.
• SUSTAINABILITY: Saving resources in production and transport, thereby improving the ecological footprint.

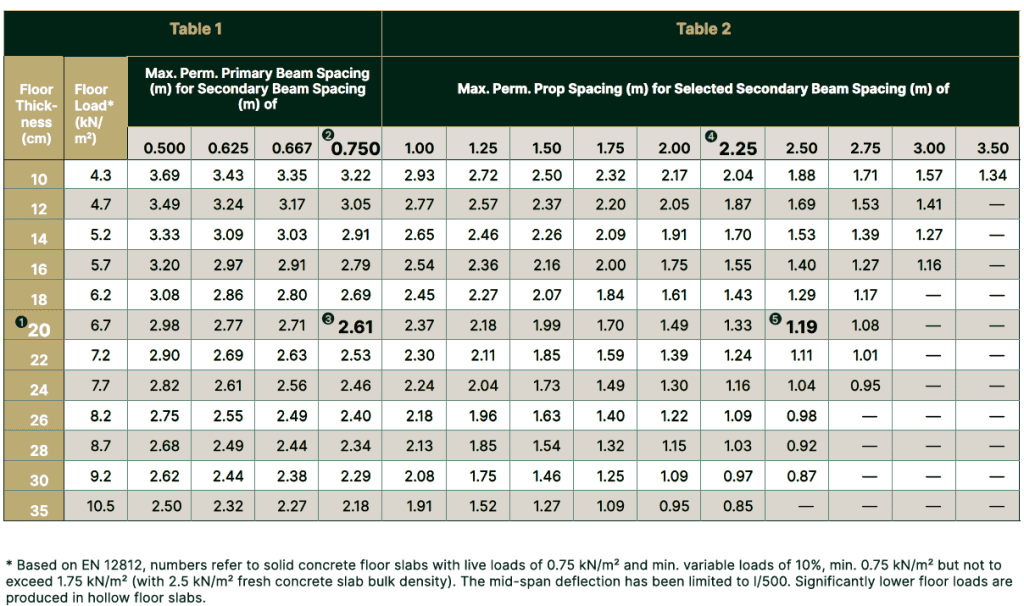

Technical Specifications

• WEB: (h) = 20 cm
• FLANGE: (h) = 4.0 cm, (w) = 8.0 cm
• MOMENT (M): 5 kNm
• SHEAR FORCE (Q): 11kN
• RIGIDITY (E x J): 450 kNm2
• CERTIFICATION: EN 13377

Get in Touch

If you’re interested in learning more about the Form-ON smartBEAMplus 20N, we invite you to get in touch with the Big River team. Our experts would be happy to provide you with additional information and answer any questions you may have. For further details, you can also take a look at our flyer by clicking HERE.
