Fibre Cement Weatherboards – Sleek & Modern
Weatherboard cladding is a fine and time-honoured component of Australian building tradition. Big River offers you the best from leading manufacturers of quality, durable and resilient weatherboards.
PrimeLine® Weatherboards
Available in styles to match many heritage weatherboard homes, PrimeLine™ Weatherboard is a durable range of 9mm thick
weatherboards for creating classic lines without the wonkiness of timber. The Primeline Chamfer profile has clean lines and comes in a

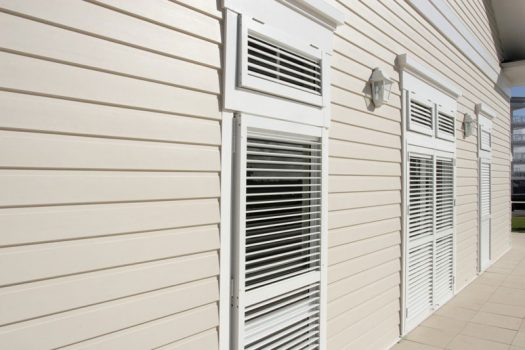

double board height for fast installation. The Primeline Newport profile features narrow boards with a rebate to deepen the overlap shadow

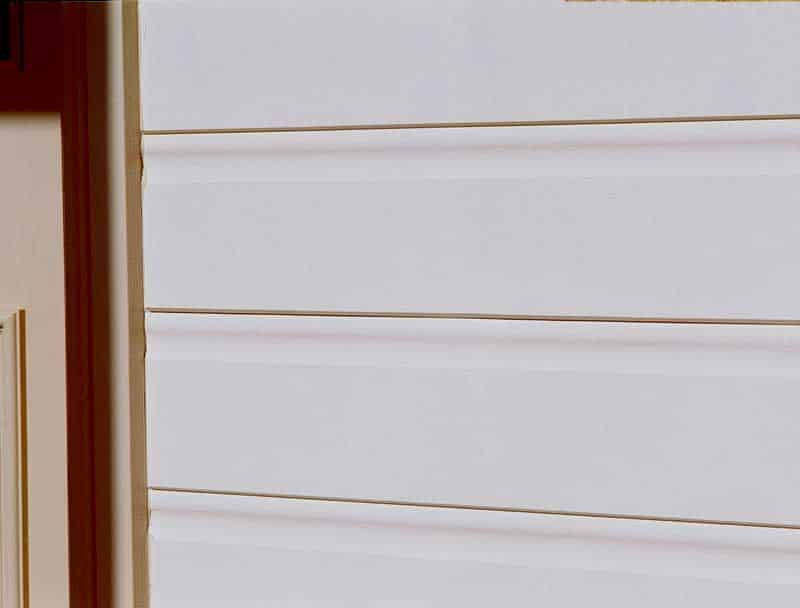

line, and is compatible with the HardieLock system for fast lap alignment. For extra shadow lines, Primeline Heritage weatherboard profile

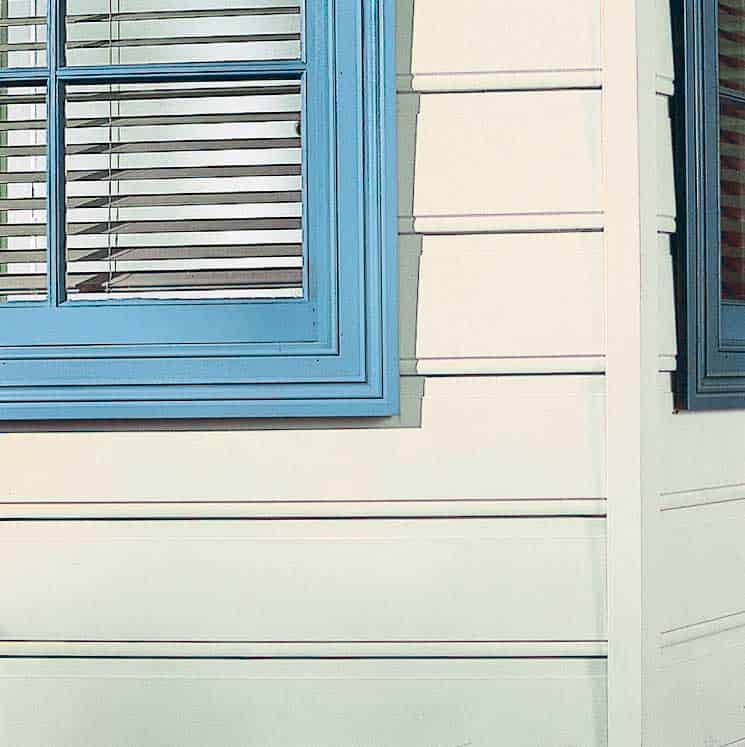

has a rebated edge and comes in double board height for fast installation. The PrimeLine Summit profile has a slender beaded edge and a
strong lap line and are compatible with the HardieLock system for fast installation.

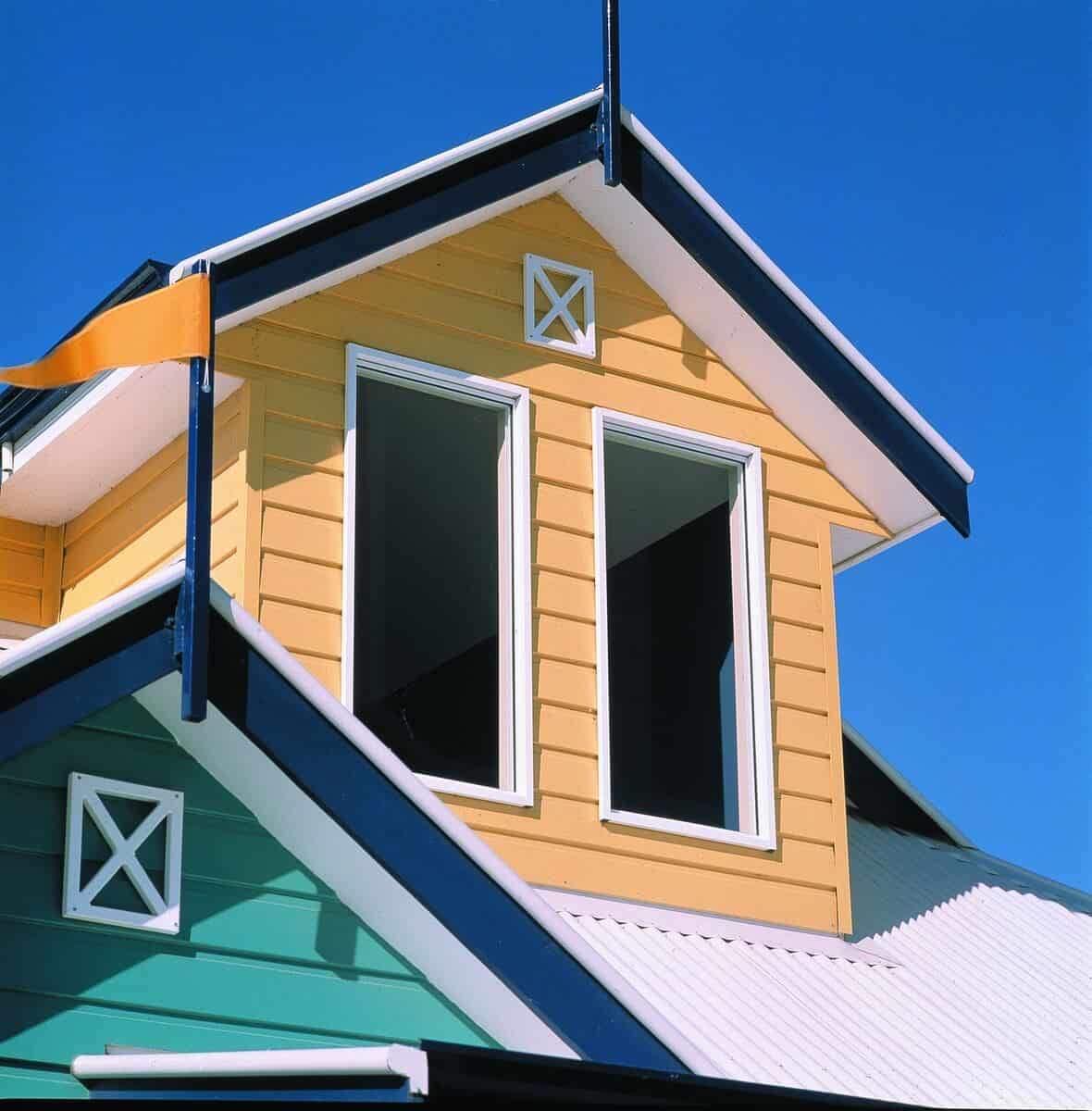

HardiePlank™ Weatherboards
HardiePlank™ is a no-fuss, 7.5mm thick fibre cement weatherboard with two woodgrain textures that are perfect for cost-effective home
extensions. Able to be used to clad whole homes or as extensions to brick homes. HardiePlank woodgrain and HardiePlank smooth are wide
board weatherboards which come in two widths (heights), 230mm and 300mm. For a more traditional look there are two narrow profile
weatherboards: HardiePlank old style with a smooth texture and a rebate to deepen the overlapping shadow line, and HardiePlank rusticated is a rough sawn textured narrow board with a rebate to deepen the overlapping shadow line.
PrimeLine Weatherboards
External Cladding Tech Spec(PrimeLine®, HardiePlank™, PanelClad® & HardieFlex™
Choose from the size range below:
| Product code | Profile | Length(mm) | Width(mm) | Thickness(mm) | Mass(kg/m2) |
| 400380 | Summit | 4,200 | 230 | 9 | 13.24 |
| 400153 | Heritage | 4,200 | 300 | 9 | 13.00 |
| 400319 | Newport | 4,200 | 170 | 9 | 13.17 |
| 400103 | Chamfer | 4,200 | 300 | 9 | 13.04 |
HardiePlank Weatherboards
| Product code | Profile | Length(mm) | Width(mm) | Thickness(mm) | Mass(kg/m2) |
| 403080 | Wood grain | 4,200 | 230 | 7.5 | 11.06 |
| 403081 | Wood grain | 4,200 | 300 | 7.5 | 11.79 |
| 400265 | Smooth | 4,200 | 230 | 7.5 | 10.90 |
| 400266 | Smooth | 4,200 | 300 | 7.5 | 11.31 |
| 400371 | Old Style | 4,200 | 205 | 7.5 | 11.67 |
| 400378 | Rusticated | 4,200 | 205 | 7.5 | 11.67 |
