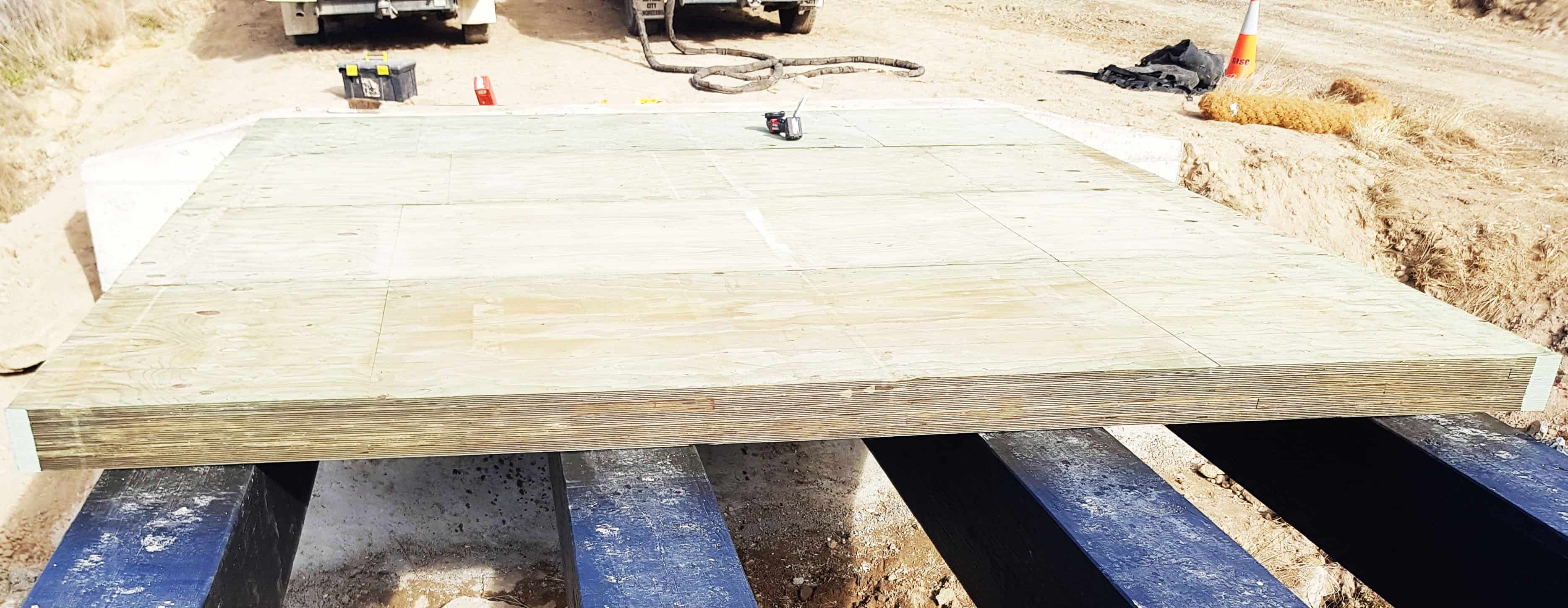

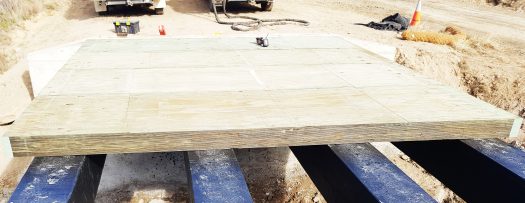

Engineered Plywood Bridge Decking

Engineered Plywood Bridge Decking

OVERVIEW

BridgePly – Give timber bridges a new lease of life. BridgePly is a structural grade plywood manufactured to AS/NZS 2269.

Engineered Plywood Bridge Decking

BridgePly – Give timber bridges a new lease of life. BridgePly is a structural grade plywood manufactured to AS/NZS 2269.

Description

Give timber bridges a new lease of life.

BridgePly is a structural grade plywood manufactured to AS/NZS 2269.

BridgePly is an engineered grade plywood manufactured to AS/NZS 2269. Made in Australia from sustainable and renewable Australian Plantation Pine, BridgePly offers a faster, lighter more cost effective bridge deck solution.

BridgePly is deep envelope treated (H5) giving class 1 durability and 50 year design life. Use of BridgePly can increase live load capacity- meets T44 and M1600 loadings and complies with MRTS-87.

BridgePly panels are available in widths of 1200mm and continuous lengths up to 14m.

Standard AS/NZS 2269.0 Structural Plywood
Treatment H5 Deep Envelope Treatment
Sheet Size Width 1200mm. Length continuous up to 14m
Thickness Standard 75mm – 170mm, other available upon request
Plywood Grade CC
Compliance MRTS87 Specification
Loading T44 M1600
Weight 105 kg/m2 (170mm thickness)
Timber Species Radiata Pine (Sustainable Timber AFS-AS4708)
Moisture Content 0-12% ex mill untreated
Tolerance As per AS/NZS 2269.0. thickness -0 +6%
Bond Type A Bond, Phenolic/Resorcinol
Formaldehyde Super E0
Thermal Expansion Average coefficient of thermal expansion for structural plywood is approximately 4.5 x 10-6 mm/mm/°C as compared width 11×10-6 mm/mm/°C for steel.
Certification Engineered Wood Products Association of Australia (EWPAA). Chain of Custody Certified, AFS/PEFC certified number 224
