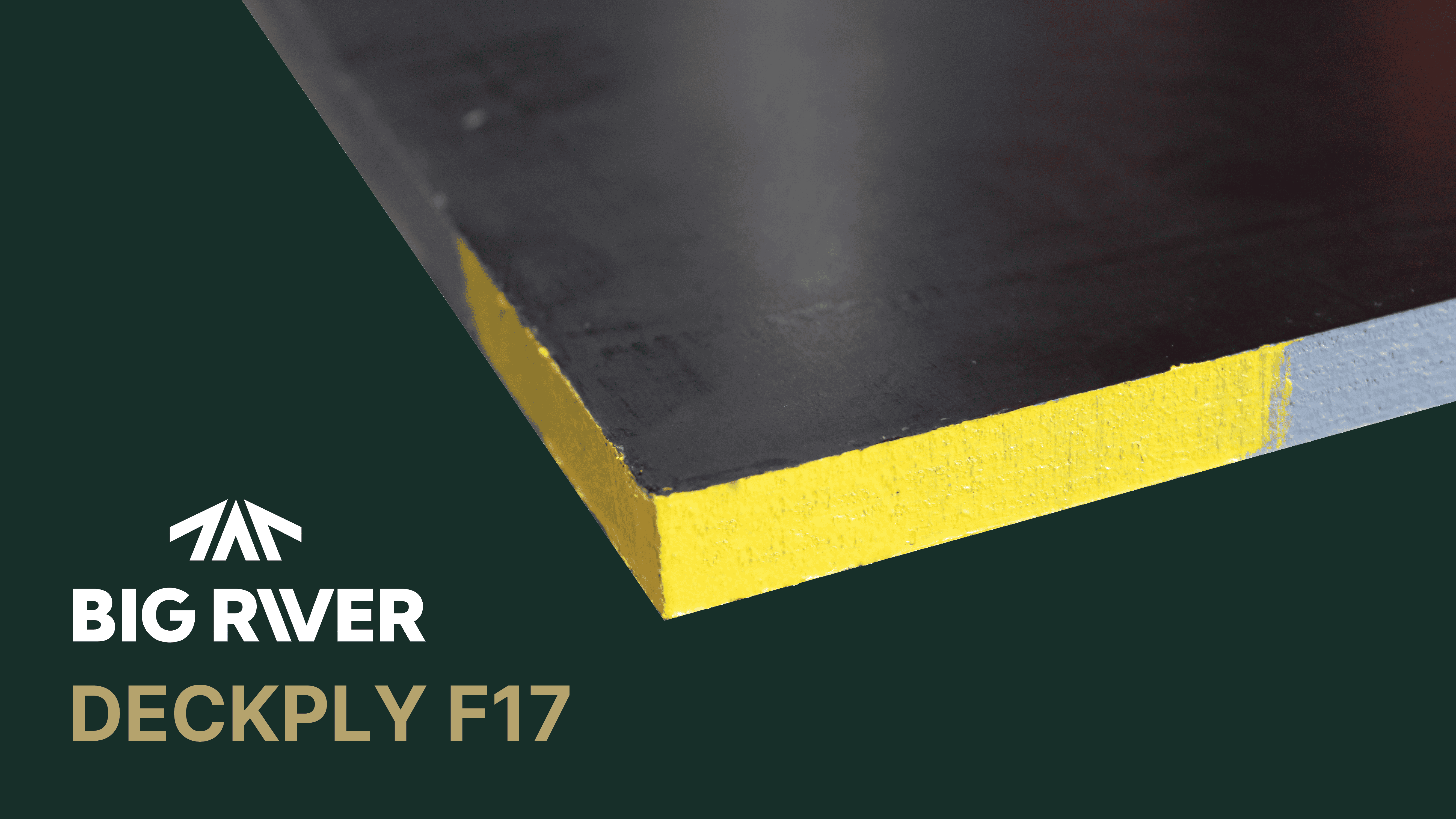

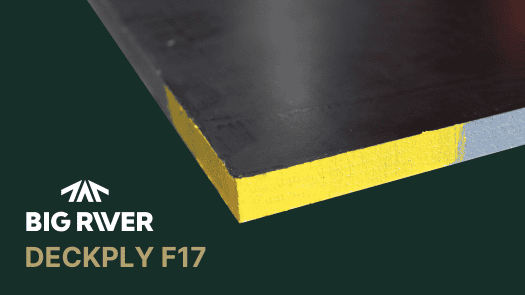

DECKPLY F17

Designed for your Formply solutions

Deckply is a high-quality plywood panel developed and engineered predominantly from graded eucalyptus veneers to the Australian Formwork plywood standard AS6669 as well as to the Australian and New Zealand standard AS/ NZS2269-Structural Plywood.

Glued with phenol formaldehyde resin and over laid with a hard durable water proof resin impregnated paper to give concrete a smooth finish. The glue is Marine A-BOND, E0. Deckply can withstand rigours of construction moisture and provide a significant number of re-uses.

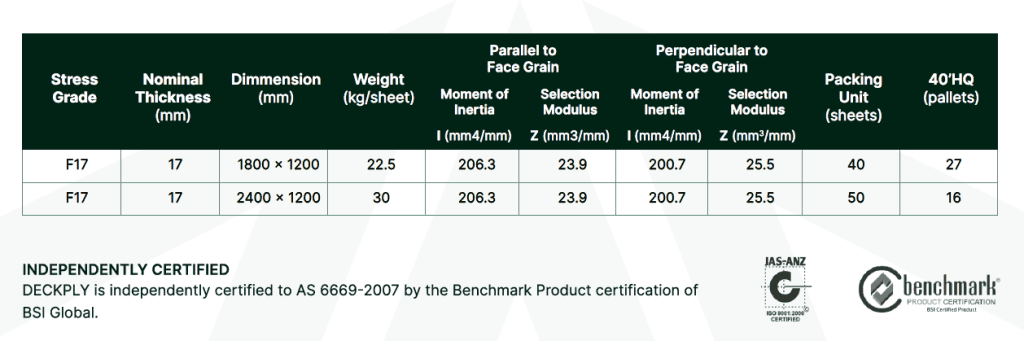

Technical Specifications

• ADHESIVE: Phenolic resin
• BOND: Type A (Marine) AS/NZS2098 and AS2754
• EDGE SEAL: Edges are sealed with 3 layers acrylic latex paint, water based
• STRESS GRADE: F17 applies in both directions parallel and perpendicular to the face grain
• LENGTH: ±1mm
• WIDTH: ±1mm
• THICKNESS: ±3%
• SQUARENESS: ±2mm

Features & Benefits

• Achieve a Class 2 off-form finish on the first pour as per Deckply installation details and AS3610 subject conditions.
• Lightweight – the weight of 1800mm x 1200mm x 17mm is 22.5kg.
• Reusable – when good site concreting practices are used, Formply products can be reused numerous times.
• Flexible – easily shaped to fit custom sized applications, can be used on steel or timber form frame systems.
• Manufactured to stress grade of F17.
• Manufactured with “A” bond Phenolic adhesive with lowest formaldehyde emissions: E0. Edges coated with weather shield acrylic latex under coat plus a top coat to act as a water repellent edge sealant.
• Precise squareness and straightness.

Get in Touch

If you’d like to learn more about our Deckply F17 range, feel free to contact the Big River team. Our experts are ready to provide further details and assist with any questions.
